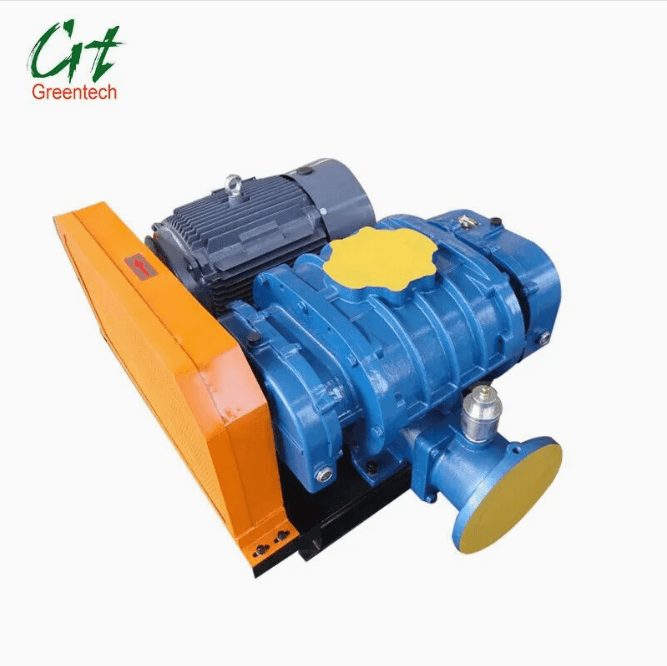

M Roots Blower: Operation and Maintenance Guide

The M Roots blower is widely used in wastewater treatment, cement, chemical processing, power generation, and pneumatic conveying industries due to its simple structure, stable airflow, and reliable performance. To ensure long-term and efficient operation, it is important to understand its working principle, proper operating procedures, maintenance requirements, and common troubleshooting methods.

Working Principle of the M Roots Blower

Positive Displacement Operating Principle

The M Roots blower is a positive displacement blower that uses two synchronized three-lobe rotors to move air. The rotors rotate in opposite directions inside the casing with a small clearance and never make direct contact, resulting in low wear and reliable operation.

Air Conveying Process

As the rotors rotate, air enters through the inlet and is trapped in the space between the rotors and the casing. The air is then transported to the outlet, providing a continuous airflow. Internal compression does not occur; the pressure is generated mainly at the discharge side.

Proper Operating Procedures

Pre-start Inspection

Before startup, check the lubricating oil level, ensure the belt or coupling is securely connected, verify that the inlet and outlet pipelines are unobstructed, and confirm that the safety valve and pressure gauge function properly.

Monitoring During Operation

During operation, monitor pressure, airflow, motor current, bearing temperature, vibration, and noise. If abnormal conditions occur, stop the blower immediately for inspection to prevent equipment damage.

Correct Shutdown Procedure

Reduce the system load gradually before shutting down the blower. If the equipment will remain idle for an extended period, clean the interior and take measures to prevent moisture and corrosion.

Routine Maintenance

Replace Lubricating Oil Regularly

Lubricating oil directly affects the service life of gears and bearings. Replace the oil according to the recommended maintenance schedule and keep it clean to minimize mechanical wear.

Inspect Critical Components

Regularly inspect synchronization gears, bearings, seals, and belts. Replace worn parts promptly to avoid larger mechanical failures.

Keep the Air Intake Clean

Clean or replace the air filter regularly to prevent dust from entering the blower. A clean intake system improves efficiency and extends equipment life.

Common Problems and Solutions

Insufficient Airflow

Low airflow may result from clogged filters, air leaks, belt slippage, or excessive rotor clearance. Inspect each component and repair or replace defective parts as needed.

High Operating Temperature

Overheating is often caused by insufficient lubrication, excessive discharge pressure, or poor cooling conditions. Check the lubrication system and operating parameters to restore normal performance.

Excessive Vibration and Noise

Abnormal vibration or noise may indicate worn bearings, coupling misalignment, loose foundations, or rotor contact. Prompt inspection and adjustment can prevent further damage.

Conclusion

The M Roots blower offers stable performance, easy maintenance, and long service life. Proper operation, regular inspections, and timely maintenance help improve efficiency, reduce downtime, and lower operating costs.
