The Levitation Matrix: Active vs. Hybrid Magnetic Bearing Control in Turbo Blowers

In high-speed turbo machinery, mechanical friction and lubrication limits have long governed the boundaries of efficiency and maintenance cycles. Traditional oil or grease-lubricated bearings introduce parasitic drag, thermal limits, and contamination risks, particularly when rotational speeds exceed 20,000 RPM. The integration of Active Magnetic Bearings (AMB) eliminates physical contact entirely, transforming industrial blowers into precision-levitated systems capable of frictionless operation, zero wear, and real-time dynamic adaptation.

Real-Time Displacement Sensors: Tracking Rotor Positions at 20,000+ RPM

Maintaining a stable, contactless float for a heavy industrial rotor spinning at ultra-high speeds requires continuous spatial awareness.

Sub-Micron Precision: Eddy-current displacement sensors are positioned orthogonally around the radial and axial axes of the shaft. These sensors monitor the rotor's position relative to the stator housing with sub-micron resolution.

Microsecond Sampling: The control electronics sample rotor displacement at frequencies exceeding 20 kHz (updating every few microseconds).

Dynamic Runout Compensation: Advanced digital signal processors (DSPs) filter out mechanical and electrical runout anomalies in real time, ensuring that the control system reacts solely to actual physical deviations rather than sensor surface imperfections.

PID Control Loops: Maintaining Sub-Micron Air Gaps Under Sudden Load Shifts

Once position data is acquired, the control architecture must instantaneously calculate and apply the correct restorative electromagnetic forces to maintain a typical air gap of 0.5 to 1.0 mm.

Multi-Axis Decentralized Control: The feedback loop employs decoupled proportional-integral-derivative (PID) algorithms augmented by notch filters to suppress structural resonance frequencies of the rotor.

Load Transient Adaptation: When a turbo blower experiences sudden pressure surges or rapid flow variations, the rotor experiences destabilizing aerodynamic forces. The PID controller instantly modulates current to opposing electromagnet coils, stiffening the magnetic field to resist deflection.

Stiffness and Damping Tuning: Unlike passive systems, an AMB's virtual stiffness and damping can be tuned via software parameters, allowing the blower to traverse critical speeds smoothly without passing through destructive resonant peaks.

Power Failure Backup: How Auxiliary Landing Bearings Protect Rotors During Emergency Shutdowns

While magnetic levitation ensures zero-contact operation during normal states, total electrical grid failure presents a critical engineering challenge: loss of electromagnet excitation causes the multi-kilogram rotor to drop instantly.

High-Speed Touchdown Protection: Uninterruptible power supplies (UPS) provide milliseconds of ride-through power for controlled digital deceleration, but physical auxiliary landing bearings (typically hybrid ceramic ball bearings or dry-lubricated bushings) are engineered to catch the dropping shaft.

Thermal and Shock Resilience: The internal clearance between the auxiliary bearing and the shaft is strictly engineered to be smaller than the magnetic stator clearance. This ensures the rotor makes contact smoothly, withstanding high-velocity sliding friction and heavy impact loads during emergency coast-down.

Rapid Restart Capability: Modern auxiliary systems are designed to endure multiple emergency touchdowns without catastrophic damage, preserving equipment integrity and ensuring rapid return-to-service once power is restored.

Strategic Value: Framing industrial blower technology through the lens of advanced control topologies elevates Greentech's positioning from standard equipment manufacturing to high-precision engineering. This technical depth directly captures the attention of tier-one specifiers, municipal engineering consultants, and large-scale EPC contractors seeking elite reliability and uncompromising energy efficiency.

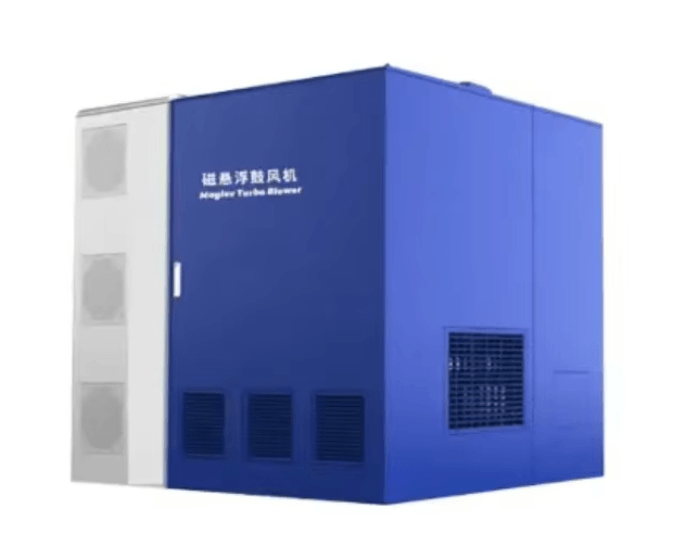

Maglev Turbo Blowers Product Information
