How the M Series Roots Blower Works: A Simple Guide for Users

Introduction

Ever seen an M series Roots blower in action and wondered how it actually moves air or gas? These blowers are common in water treatment plants, chemical processing, and industrial systems that need a steady flow of gas. Understanding how it works is not just for engineers—it helps anyone using or maintaining the blower keep it running smoothly.

Main Components

Casing and Ports

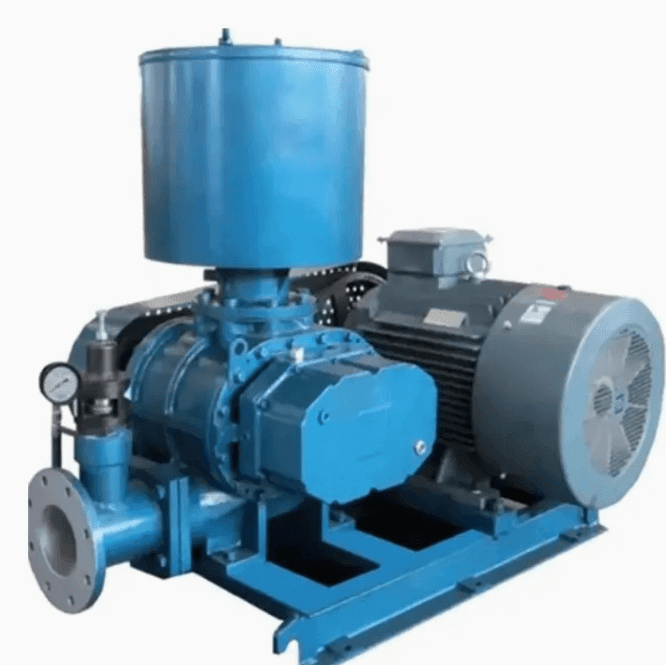

The M series blower has a strong, sturdy casing with clearly marked inlet and outlet ports. Gas enters the blower through the inlet and exits through the outlet, but the magic happens inside.

Rotors and Shafts

Inside, two or three lobed rotors spin in perfect sync. They don’t touch each other, but the rotation traps gas in pockets between the rotors and the casing. The shafts and bearings hold everything in place, ensuring smooth rotation and precise clearance.

Seals

Sealing mechanisms prevent leakage and help maintain consistent pressure. Small gaps are crucial—too tight and the rotors might scrape, too loose and efficiency drops.

How It Works

When the rotors spin, they trap a fixed volume of gas and push it toward the outlet. Unlike some compressors, the gas isn’t squeezed inside—the flow relies on volume displacement. The rotor shape, casing size, and speed all affect how much air moves, the pressure rise, and the blower’s efficiency.

Tip for users: check rotor alignment and clearances regularly. Small misalignments can cause vibration, noise, or reduced performance.

Practical Tips

Keep the blower clean and free of debris.

Inspect bearings and seals regularly.

Monitor flow rate, pressure, and power consumption to spot potential issues early.

Conclusion

The M series Roots blower may look complicated, but at its heart, it’s just clever engineering moving gas using spinning rotors. Knowing how the structure and working principle connect helps you run it efficiently, reduce noise, and avoid problems.
