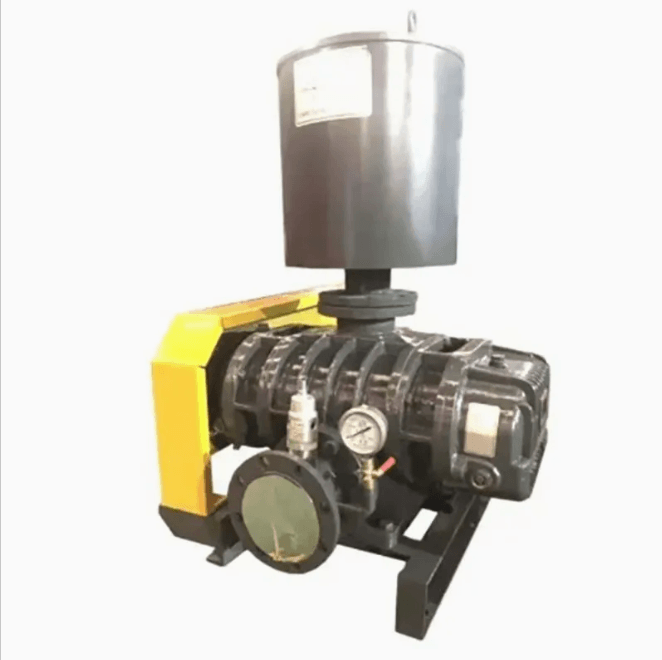

Working Principle and Application Advantages of NSRH Roots Blower

The NSRH Roots blower is a type of positive displacement blower that operates based on the Roots principle. It is mainly used in industrial systems that require a stable air supply and continuous gas delivery. The blower uses a pair of specially shaped rotors that rotate synchronously to complete the processes of air intake, conveying, and discharge. It is widely used in wastewater treatment, pneumatic conveying, industrial aeration, material conveying, and other applications.

Working Principle of NSRH Roots Blower

Synchronous Counter-Rotation of Two Rotors

The NSRH Roots blower is equipped with two intermeshing rotors inside the housing. The driving rotor receives rotational power from the drive system and then drives the driven rotor through precision timing gears, allowing both rotors to maintain a fixed speed ratio and synchronized operating cycle.

After the blower starts, the rotors continuously rotate inside the housing. A precisely designed clearance is maintained between the two rotors and between the rotors and the housing, allowing stable mechanical operation during operation. As the rotors rotate, the space on the inlet side continuously forms and expands, allowing external air to enter the blower under the pressure difference.

Completing Air Intake, Conveying, and Discharge

After entering the housing, air is carried toward the discharge side by the working chambers formed between the rotor surfaces and the housing. As the rotors continue to rotate, the working chambers undergo periodic changes in volume. When the air reaches the discharge area, it enters the discharge pipeline and is delivered to the air-consuming equipment.

This process is continuously repeated as the rotors rotate, allowing the NSRH Roots blower to provide continuous air delivery. Its core operating feature is not high-speed direct compression of a large volume of air, but the use of periodic changes in working volume to convey gas, resulting in relatively stable airflow.

Structural Advantages of NSRH Roots Blower

Precision Transmission Ensures Synchronized Operation

Timing gears are one of the key components for the proper operation of a Roots blower. Through a properly designed gear transmission system, the two rotors can maintain an accurate relative position, preventing them from coming into contact with each other while ensuring stable gas delivery.

Proper Clearances Improve Operational Stability

The NSRH Roots blower maintains appropriate clearances between the rotors and the housing. This design helps ensure effective gas conveying while reducing mechanical contact during operation. Combined with the bearing, sealing, lubrication, and other structural components, the blower can meet the requirements of continuous-duty applications.

Stable Airflow Meets Continuous Air Supply Requirements

The output airflow of a Roots blower is closely related to factors such as rotor dimensions and rotational speed. In continuous air supply applications such as wastewater treatment aeration and pneumatic conveying, the NSRH Roots blower can provide a stable airflow and continuously supply the required air source to downstream process equipment.

NSRH Roots Blower for Various Operating Conditions

In wastewater treatment, the NSRH Roots blower can continuously supply air to aeration tanks, providing the oxygen required for biological treatment processes. In pneumatic conveying systems, its stable airflow can be used to transport powdery and granular materials. In industrial production, it can also provide continuous power for related equipment according to system pressure and airflow requirements.

During actual equipment selection, factors such as required airflow, pressure, gas medium, installation environment, and continuous operating time should be considered comprehensively to select a model that matches the specific operating conditions.

NSRH Roots Blower for a Reliable Air Supply System

Based on the mature positive displacement operating principle, the NSRH Roots blower uses two synchronized rotors to provide continuous air delivery. It offers a reasonable structure, stable operation, and a wide range of applications. For industrial users seeking a reliable air source and long-term operating capability, selecting an NSRH Roots blower that matches the actual operating conditions can help improve the reliability of the air supply system and provide stable support for production processes.
