How Does an Air Suspension Blower Work?

When people first hear about an air suspension blower, one question often comes up: how can air support a high-speed rotating shaft?

The answer is actually quite simple. An air suspension blower uses a high-speed motor, a precision impeller, and an air bearing system to produce and deliver air without relying on traditional mechanical contact during normal operation.

Instead of using oil-lubricated bearings, the system creates a thin layer of air between the rotating shaft and the bearing surface. This air film supports the rotor and allows it to spin at high speed with very little mechanical contact.

But how does the whole process work? Let’s take a closer look.

What Is an Air Suspension Blower?

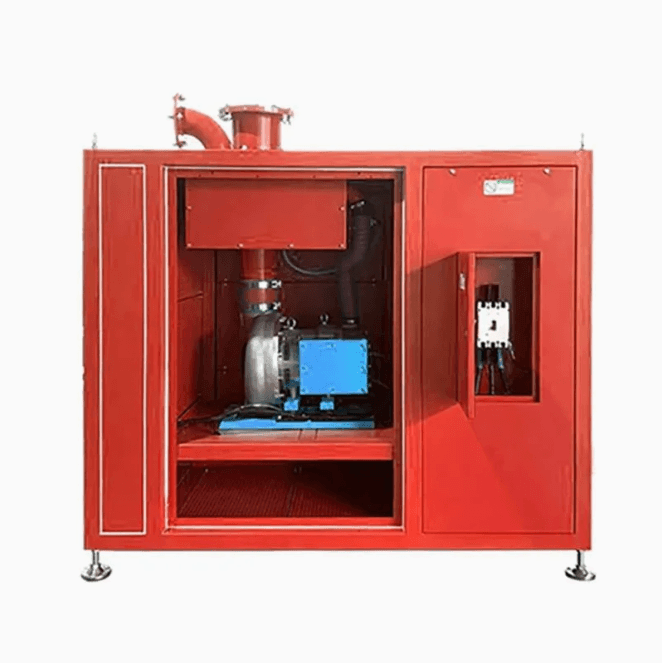

An air suspension blower is a type of high-speed centrifugal blower that uses air suspension or air bearing technology to support its rotating shaft.

The main parts usually include a high-speed motor, impeller, air bearing, inlet filter, diffuser, and control system.

Each part has a job. The motor drives the impeller, the impeller increases the energy of the air, the diffuser helps convert that energy into pressure, and the air bearing supports the high-speed rotor.

This combination makes the air suspension blower different from many traditional industrial blowers.

How Does an Air Suspension Blower Work?

Step 1: Air Enters the Blower

The working process starts when ambient air enters through the inlet. Before entering the main compression section, the air normally passes through an inlet filter to remove dust and other particles.

Clean inlet air is important because the blower operates at high speed and requires a stable airflow path.

Step 2: The High-Speed Motor Drives the Impeller

After the system starts, the high-speed motor drives the impeller.

Unlike a conventional blower that may use belts or other transmission parts, many air suspension blowers use a direct-drive structure. The motor and impeller can therefore work together at high speed with fewer mechanical transmission components.

As the impeller rotates, it transfers energy to the air.

Step 3: The Air Is Accelerated by the Impeller

The rotating impeller moves air from the center toward the outer edge.

As the air moves through the impeller, it gains velocity and kinetic energy. The air then enters the diffuser, where part of this velocity energy is converted into pressure.

This is the basic principle of centrifugal compression.

In simple terms, the impeller gives the air speed, and the diffuser helps turn that speed into useful pressure.

How Does the Air Film Support the Rotor?

This is the most interesting part of an air suspension blower.

Air Film Formation

When the rotor begins to rotate, the air bearing system starts to build an air film between the rotor and bearing surface.

As the rotational speed increases, the air film becomes stable enough to generate a supporting force. The rotor is then separated from the bearing surface during normal high-speed operation.

This is why the technology is often called an air suspension bearing or air bearing system.

Non-Contact High-Speed Operation

Once the air film is properly established, the rotor can operate without the normal mechanical contact found in traditional bearings.

Less mechanical contact means less friction and wear. It also reduces the need for conventional bearing lubrication.

That can be a big advantage for industrial users who want cleaner operation and lower maintenance requirements.

It is important to understand that “air suspension” does not mean the rotor is floating freely from the very first second. Startup and shutdown involve different operating conditions. The air film develops as the rotor reaches the required speed.

Why Is Air Suspension Technology Useful?

The main benefit is not simply that the rotor can spin fast. The bigger value comes from the combination of high-speed operation, non-contact bearing support, and efficient centrifugal compression.

With fewer mechanical contact points, the blower can reduce friction-related losses and avoid many traditional lubrication tasks.

An air suspension blower can also work well with variable speed control. When the process needs more air, the blower can increase speed. When demand drops, it can reduce speed.

This helps the equipment provide air according to actual process requirements instead of constantly running at full capacity.

Where Are Air Suspension Blowers Used?

Air suspension blowers are suitable for many applications where stable airflow, energy efficiency, and clean operation are important.

Wastewater Treatment

In wastewater treatment plants, blowers provide air for biological treatment and aeration. Since aeration can require continuous airflow, an efficient blower can help reduce energy consumption.

Pneumatic Conveying

Air suspension blowers can also provide stable airflow for moving powders, particles, and other materials through pipelines.

Industrial Aeration

Industrial fermentation and other processes may require a steady supply of air. Oil-free operation can be useful when air quality matters.

Food Processing

Food and beverage processes can benefit from clean, oil-free air and reduced maintenance requirements.

Conclusion

So, how does an air suspension blower work?

The process can be understood in a few simple steps: air enters the blower, the high-speed motor drives the impeller, the impeller accelerates the air, the diffuser converts part of the velocity into pressure, and the compressed air is then delivered to the process.

At the same time, the air bearing system creates a thin air film that supports the high-speed rotor and enables non-contact operation during normal running.

At Greentech, we focus on practical blower and vacuum technology for real industrial conditions. As a source manufacturer and vacuum pump technology expert, we understand that choosing the right blower is not only about maximum speed or rated power. Airflow, pressure, operating hours, control range, maintenance needs, and the complete system all matter.

If you are looking for an air suspension blower for wastewater treatment, pneumatic conveying, industrial aeration, or another application, Greentech can help you find a solution that matches your actual operating requirements.
